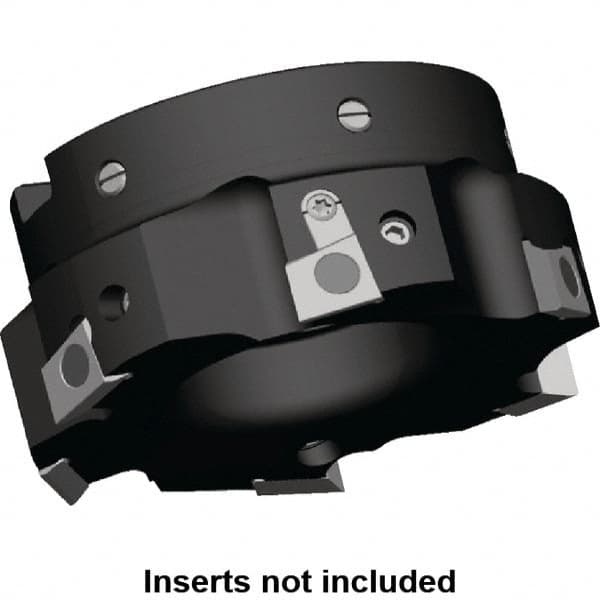

Kennametal - 12 Inserts, 200mm Cut Diam, 60mm Arbor Diam, 9.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 63mm High, BGHX 15L5... Insert Compatibility, Series Fix-Perfect
Item #: 46886800
Brand: Kennametal
Model #: 1758499
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Cutting Diameter (Decimal Inch) | 7.8740 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | BGHX 15L5... |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 9.50 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Clamp |
| Cutter Style | PM |
| Number of Flutes | 12 |
| Hub Diameter (mm) | 134.00 |
| Hub Diameter (Decimal Inch) | 5.2756 |
| Number of Adjustable Pockets | 3 |
| Maximum RPM | 6366 |
| Complete Insert Compatibility | BGHX 15L5PC.R.. |
