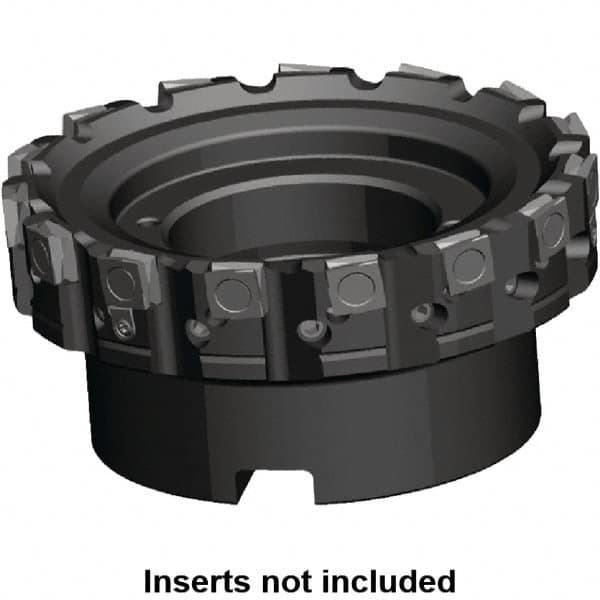

Kennametal - 12 Inserts, 200mm Cut Diam, 60mm Arbor Diam, 8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 63mm High, SPHX 15T6... Insert Compatibility, Series Fix-Perfect
Item #: 46886826
Brand: Kennametal
Model #: 1795288
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Cutting Diameter (Decimal Inch) | 7.8740 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | SPHX 15T6... |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 8.00 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Clamp |
| Cutter Style | WFP |
| Number of Flutes | 12 |
| Hub Diameter (mm) | 134.00 |
| Hub Diameter (Decimal Inch) | 5.2756 |
| Number of Adjustable Pockets | 2 |
| Maximum RPM | 1600 |
| Complete Insert Compatibility | SPHX 15T6PC.R.. |
