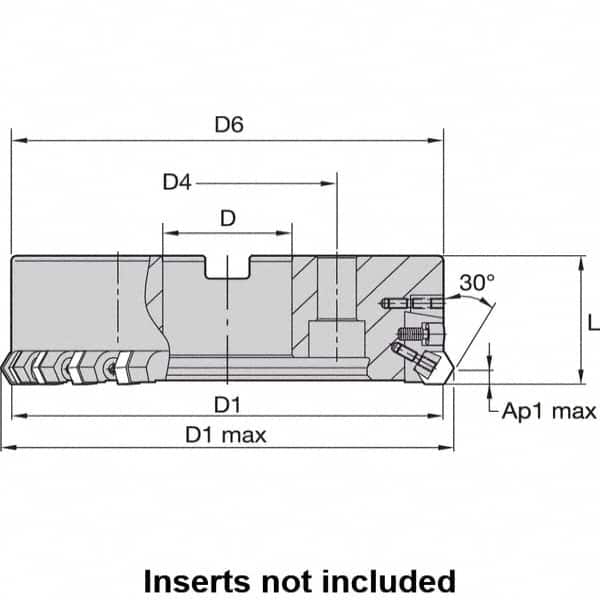

Kennametal - 4" Cut Diam, 1-1/4" Arbor Hole, 8mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 10 Inserts, HNGX 0905... Insert, Left Hand Cut, 10 Flutes, Series HexaCut
Item #: 46886974
Brand: Kennametal
Model #: 2964497
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (mm) | 110.24 |
| Cutting Diameter (Decimal Inch) | 4.3400 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 2.0000 |
| Overall Height (mm) | 50.80 |
| Insert Compatibility | HNGX 0905... |
| Series | HexaCut |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 10 |
| Cutter Style | M750 |
| Number of Flutes | 10 |
| Hub Diameter (Decimal Inch) | 4.0000 |
| Hub Diameter (mm) | 101.60 |
| Maximum Body Diameter (Decimal Inch) | 4.2866 |
| Maximum RPM | 3400 |
| Cutting Direction | Left Hand |
| Complete Insert Compatibility | HNGX 0905... |
