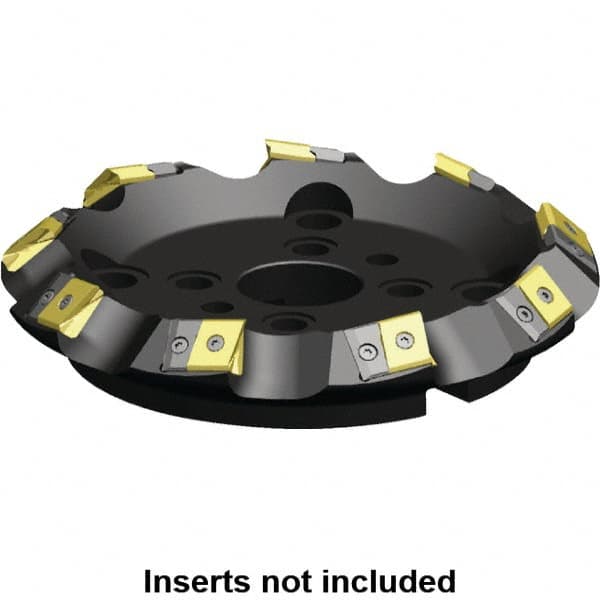

Kennametal - 160.34mm Cut Diam, 40mm Arbor Hole, 17.15mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 6 Inserts, LN.U 2410... Insert, Right Hand Cut, 6 Flutes, Series MEGA45
Item #: 46887048
Brand: Kennametal
Model #: 4040931
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.34 |
| Cutting Diameter (Decimal Inch) | 6.3126 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | LN.U 2410... |
| Series | MEGA45 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 17.15 |
| Maximum Depth of Cut (Decimal Inch) | 0.6750 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | MEGA |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Hub Diameter (mm) | 90.00 |
| Maximum Body Diameter (Decimal Inch) | 6.6540 |
| Maximum RPM | 12620 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | LN.U 241012ANSR |
