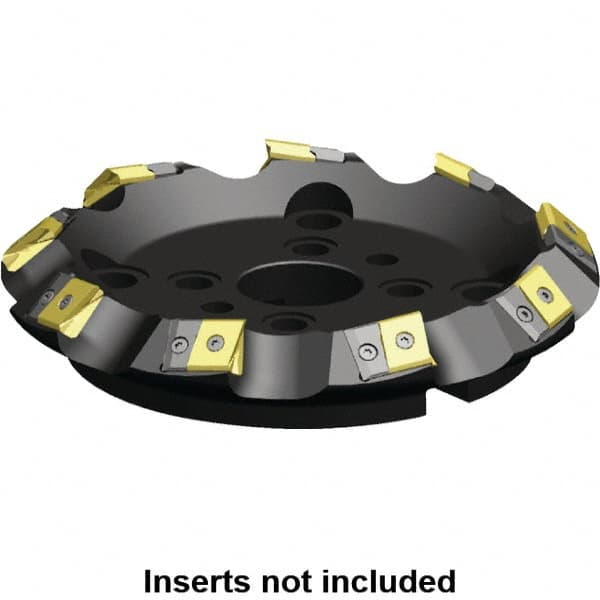

Kennametal - 235.35mm Cut Diam, 60mm Arbor Hole, 17.15mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, LN.U 2410... Insert, Right Hand Cut, 7 Flutes, Series MEGA45
Item #: 46887063
Brand: Kennametal
Model #: 4102923
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 235.35 |
| Cutting Diameter (Decimal Inch) | 9.2657 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | LN.U 2410... |
| Series | MEGA45 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 17.15 |
| Maximum Depth of Cut (Decimal Inch) | 0.6750 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | MEGA |
| Number of Flutes | 7 |
| Hub Diameter (Decimal Inch) | 6.2992 |
| Hub Diameter (mm) | 160.00 |
| Maximum Body Diameter (Decimal Inch) | 9.4090 |
| Maximum RPM | 9970 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | LN.U 241012ANSR |
