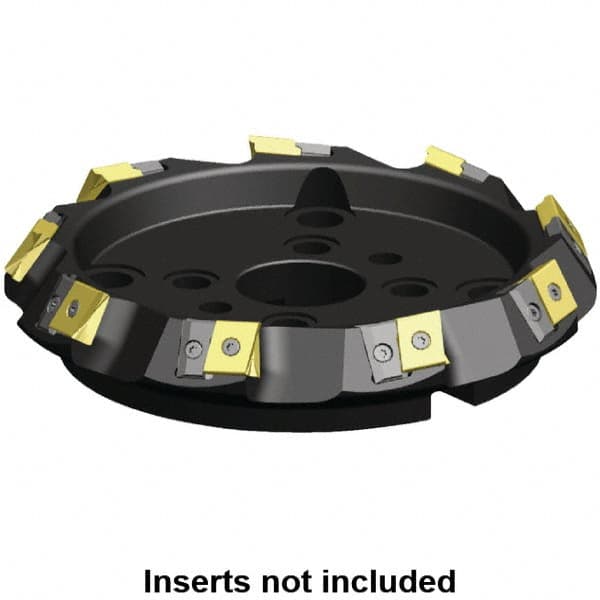

Kennametal - 184.93mm Cut Diam, 40mm Arbor Hole, 21.39mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 7 Inserts, LN.U 2210... Insert, Right Hand Cut, 7 Flutes, Series MEGA60
Item #: 46887089
Brand: Kennametal
Model #: 4147459
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 184.93 |
| Cutting Diameter (Decimal Inch) | 7.2807 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | LN.U 2210... |
| Series | MEGA60 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 21.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.8420 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | MEGA |
| Number of Flutes | 7 |
| Hub Diameter (Decimal Inch) | 5.1180 |
| Hub Diameter (mm) | 130.00 |
| Maximum Body Diameter (Decimal Inch) | 7.4800 |
| Maximum RPM | 9830 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | LN.U 221012PNSR |
