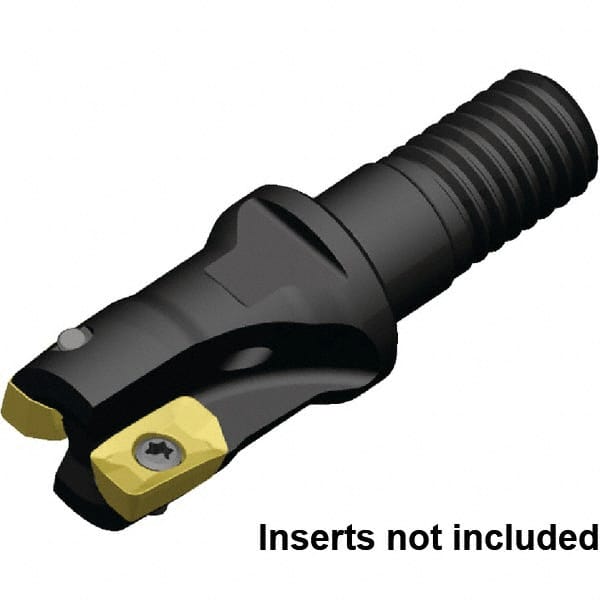

Kennametal - 11.87mm Cut Diam, 6.96mm Max Depth of Cut, 20mm OAL, Indexable Square Shoulder End Mill - EDPT 0703.. Inserts, M8 Modular Connection, Through Coolant, Series Mill 1-07
Item #: 46887238
Brand: Kennametal
Model #: 5190197
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 11.87 |
| Cutting Diameter (Decimal Inch) | 0.4673 |
| Shank Type | Modular Connection |
| Modular Connection Size | M8 |
| Overall Length/Projection (mm) | 20.00 |
| Overall Length/Projection (Decimal Inch) | 0.7874 |
| Series | Mill 1-07 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 6.96 |
| Maximum Depth of Cut (Decimal Inch) | 0.2740 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 2 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Insert Compatibility | EDPT 0703.. |
| Shank Length (Decimal Inch) | 0.6970 |
| Shank Length (mm) | 17.70 |
| Maximum RPM | 64510 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
