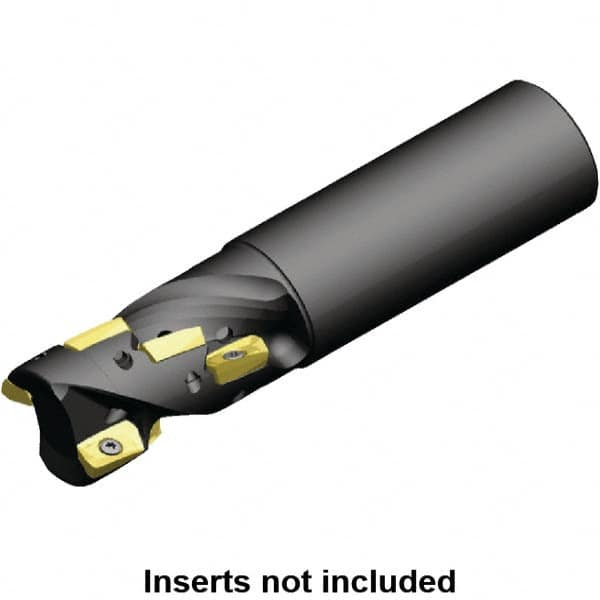

Kennametal - 20mm Cut Diam, 27.74mm Max Depth of Cut, 20mm Shank Diam, 90.2mm OAL, Indexable Square Shoulder Helical End Mill - ED.T 10T3.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series Mill 1-10
Item #: 46887378
Brand: Kennametal
Model #: 3773122
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length/Projection (mm) | 90.20 |
| Overall Length/Projection (Decimal Inch) | 3.5510 |
| Lead Angle | 0 |
| Series | Mill 1-10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 27.74 |
| Maximum Depth of Cut (Decimal Inch) | 1.0920 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Head Length (mm) | 36.00 |
| Head Length (Decimal Inch) | 1.4173 |
| Weldon Flat | No |
| Insert Compatibility | ED.T 10T3.. |
| Shank Length (Decimal Inch) | 2.1339 |
| Shank Length (mm) | 54.20 |
| Maximum RPM | 37100 |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
