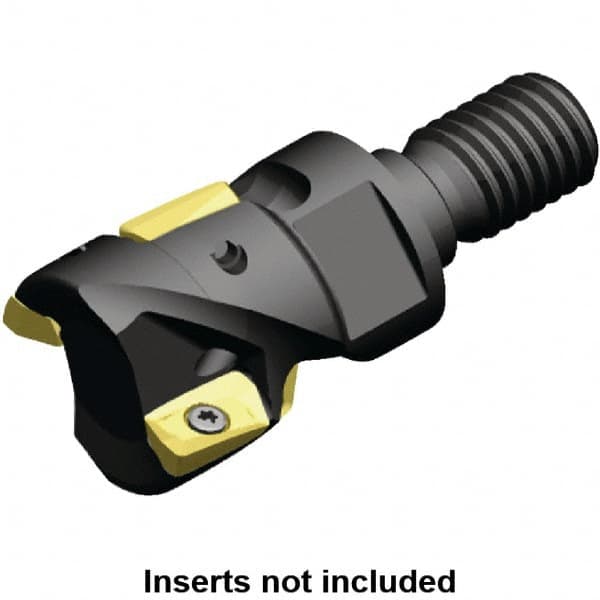

Kennametal - 25mm Cut Diam, 18.81mm Max Depth of Cut, 32mm OAL, Indexable Square Shoulder Helical End Mill - ED.T 10T3.. Inserts, M12 Modular Connection, 0° Lead Angle, Through Coolant, Series Mill 1-10
Item #: 46887394
Brand: Kennametal
Model #: 3773811
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Modular Connection |
| Modular Connection Size | M12 |
| Overall Length/Projection (mm) | 32.00 |
| Overall Length/Projection (Decimal Inch) | 1.2598 |
| Lead Angle | 0 |
| Series | Mill 1-10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 18.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.7406 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Insert Compatibility | ED.T 10T3.. |
| Shank Length (Decimal Inch) | 0.8661 |
| Shank Length (mm) | 22.00 |
| Maximum RPM | 33200 |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
