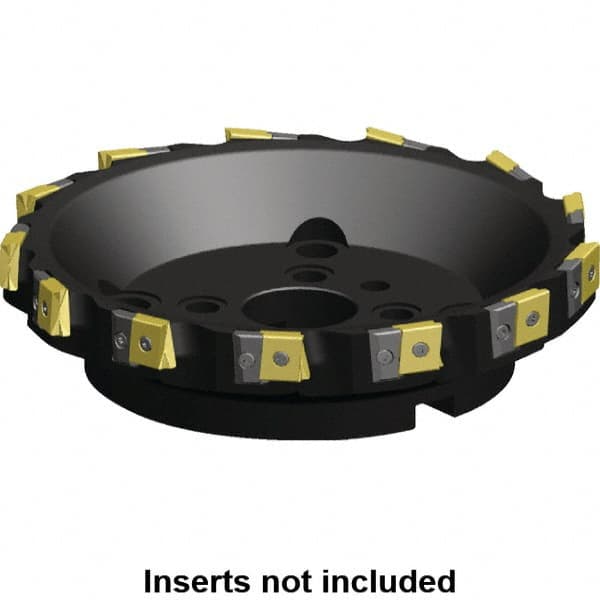

Kennametal - 7 Inserts, 160mm Cut Diam, 40mm Arbor Diam, 25.46mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 63mm High, LN.U 2210.. Insert Compatibility, Series MEGA90
Item #: 46887436
Brand: Kennametal
Model #: 4129657
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | LN.U 2210.. |
| Series | MEGA90 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 25.46 |
| Maximum Depth of Cut (Decimal Inch) | 1.0024 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | MEGA |
| Number of Flutes | 7 |
| Hub Diameter (mm) | 130.00 |
| Hub Diameter (Decimal Inch) | 5.1180 |
| Maximum Body Diameter (Decimal Inch) | 6.2600 |
| Maximum RPM | 8900 |
| Complete Insert Compatibility | LN.U 221012PNSR.. |
