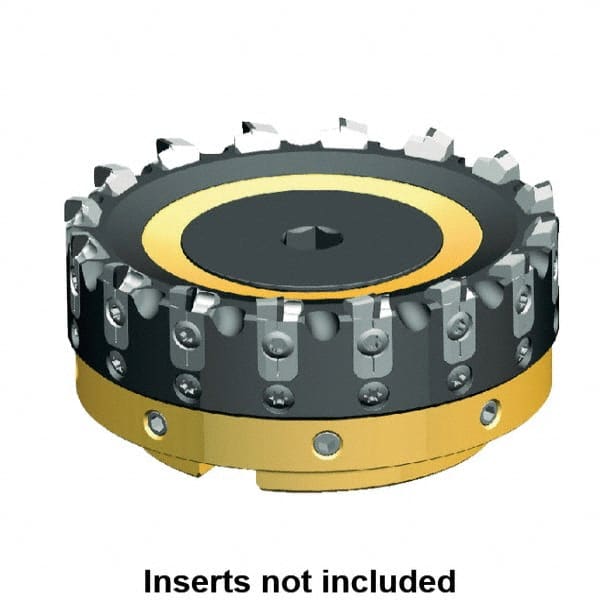

Kennametal - 24 Inserts, 200mm Cut Diam, 60mm Arbor Diam, 3mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 63mm High, Series AluMill
Item #: 46887477
Brand: Kennametal
Model #: 2881510
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Cutting Diameter (Decimal Inch) | 7.8740 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Series | AluMill |
| Maximum Depth of Cut (mm) | 3.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 24 |
| Cutter Style | KSCM |
| Number of Flutes | 24 |
| Hub Diameter (mm) | 165.50 |
| Hub Diameter (Decimal Inch) | 6.5157 |
| Maximum Body Diameter (Decimal Inch) | 7.8150 |
| Number of Adjustable Pockets | 24 |
| Maximum RPM | 12000 |
