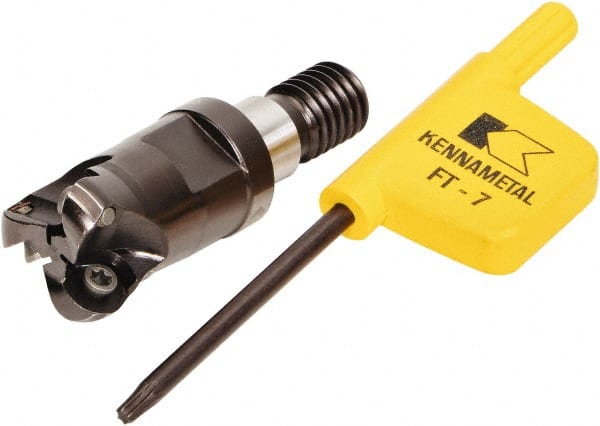

Kennametal - 12mm Cutting Diam, 0.4724" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 3 Inserts, RD.. 0501.. Insert
Item #: 46887535
Brand: Kennametal
Model #: 1888399
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M6.0 |
| Number of Cutter Inserts | 3 |
| Insert Style | RD.. 0501.. |
| Series | KDM |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 7.00 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Maximum Cutting Diameter (Decimal Inch) | 0.4724 |
| Modular Connection Size | M6 |
