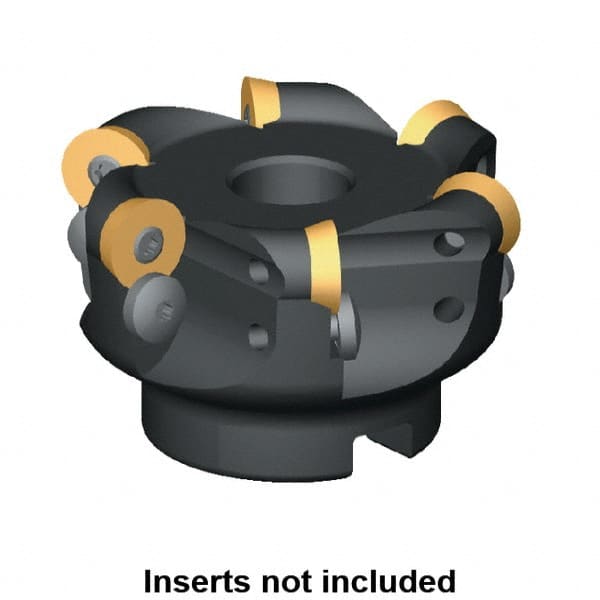

Kennametal - 80mm Cut Diam, 8mm Max Depth, 27mm Arbor Hole, 6 Inserts, RD.X 1604... Insert Style, Indexable Copy Face Mill - 50mm High, Series KDM
Item #: 46887725
Brand: Kennametal
Model #: 1888204
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | KDM |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RD.X 1604... |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.9685 |
| Insert Inscribed Circle (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6300 |
| Complete Insert Compatibility | RD.X 1604MO.. |
