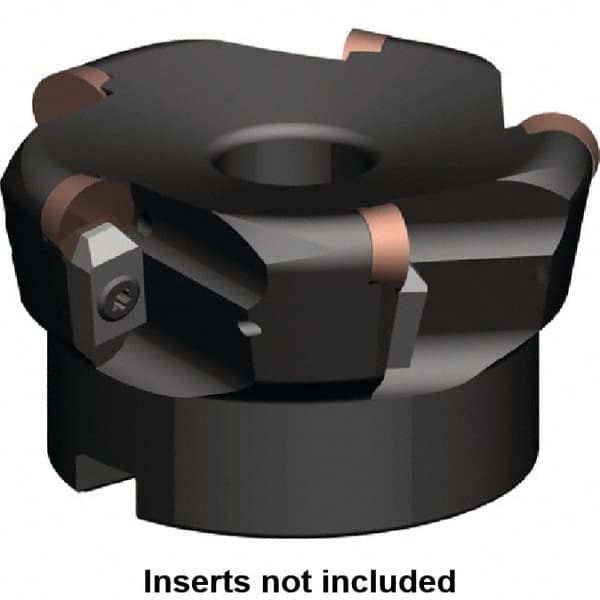

Kennametal - 80mm Cut Diam, 6.33mm Max Depth, 27mm Arbor Hole, 5 Inserts, RP.N 1204... Insert Style, Indexable Copy Face Mill - KSSR Cutter Style, 12,900 Max RPM, 50mm High, Through Coolant, Series KSSR-RP
Item #: 46887733
Brand: Kennametal
Model #: 3101758
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Maximum Depth of Cut (mm) | 6.33 |
| Maximum Depth of Cut (Decimal Inch) | 0.2490 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | KSSR-RP |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RP.N 1204... |
| Cutter Style | KSSR |
| Through Coolant | Yes |
| Maximum RPM | 12900 |
| Insert Holding Method | Clamp |
| Hub Diameter (Decimal Inch) | 2.3622 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RP.N 1204... |
