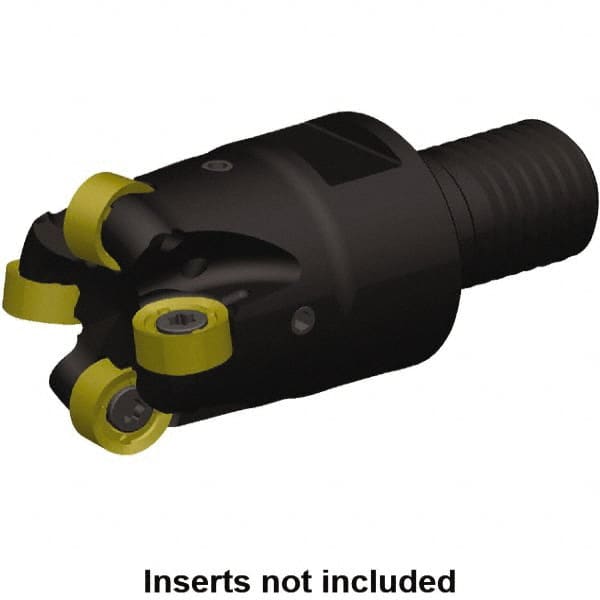

Kennametal - 32mm Cutting Diam, 1.26" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 4 Inserts, RN.J 10T3M0.N.. Insert, KDR Toolholder, Through Coolant
Item #: 46887857
Brand: Kennametal
Model #: 5152622
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Cutter Inserts | 4 |
| Insert Style | RN.J 10T3M0.N.. |
| Toolholder Style | KDR |
| Series | Rodeka |
| Overall Length (mm) | 40.00 |
| Overall Length (Decimal Inch) | 1.5748 |
| Insert Diameter (mm) | 10.00 |
| Insert Diameter (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 22.00 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2600 |
| Modular Connection Size | M16 |
