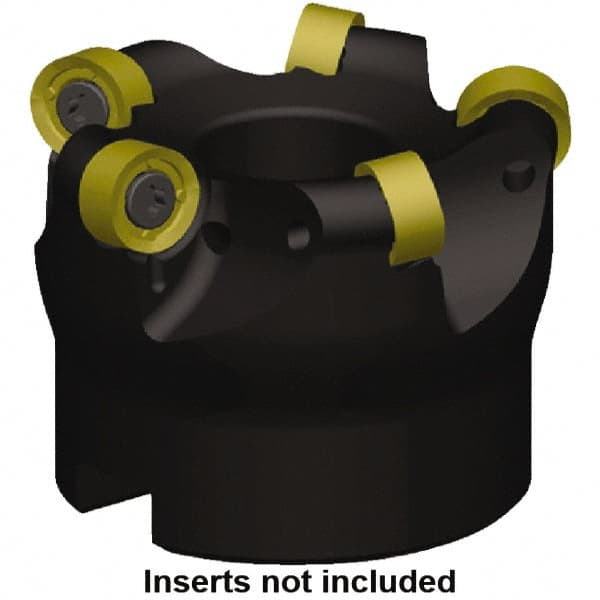

Kennametal - 40mm Cut Diam, 5mm Max Depth, 16mm Arbor Hole, 4 Inserts, RN.J 10T3... Insert Style, Indexable Copy Face Mill - KDR Cutter Style, 40mm High, Series Rodeka
Item #: 46887865
Brand: Kennametal
Model #: 5152685
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6300 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Series | Rodeka |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RN.J 10T3... |
| Cutter Style | KDR |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.4960 |
| Insert Inscribed Circle (mm) | 10.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.3937 |
| Complete Insert Compatibility | RN.J 10T3M0.N.. |
