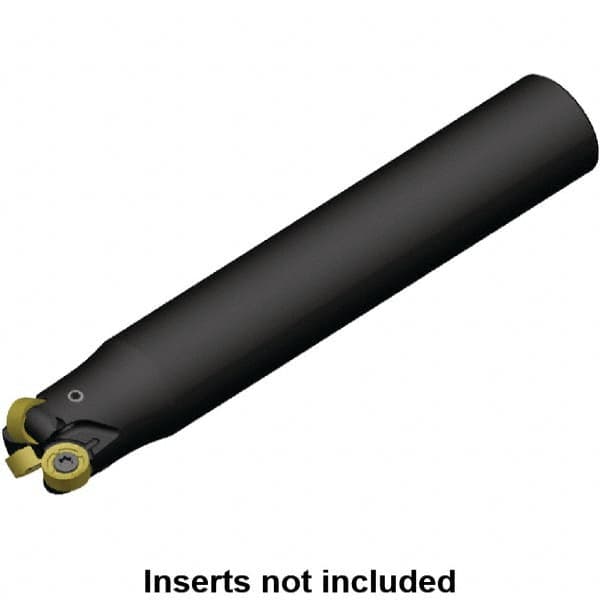

Kennametal - 25mm Cutting Diam, 32mm Shank Diam, 63/64" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RN.J 10T3M0.N.. Insert, KDR Toolholder
Item #: 46888368
Brand: Kennametal
Model #: 5152681
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Number of Cutter Inserts | 3 |
| Insert Style | RN.J 10T3M0.N.. |
| Toolholder Style | KDR |
| Series | Rodeka |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Diameter (mm) | 10.00 |
| Insert Diameter (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 15.00 |
| Shank Length (mm) | 218.00 |
| Shank Length (Decimal Inch) | 8.5827 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9843 |
