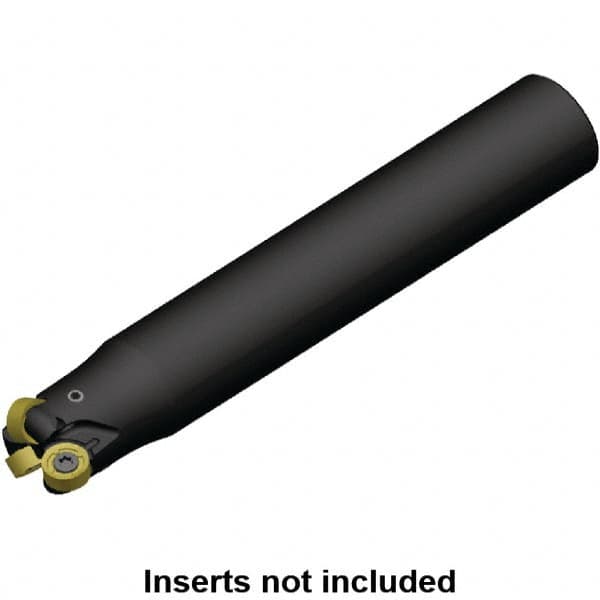

Kennametal - 25mm Cutting Diam, 63/64" Shank Diam, 63/64" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RN.J 10T3M0.N.. Insert, KDR Toolholder
Item #: 46888376
Brand: Kennametal
Model #: 5152680
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Number of Cutter Inserts | 3 |
| Insert Style | RN.J 10T3M0.N.. |
| Toolholder Style | KDR |
| Series | Rodeka |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Insert Diameter (mm) | 10.00 |
| Insert Diameter (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 15.00 |
| Shank Length (mm) | 168.00 |
| Shank Length (Decimal Inch) | 6.6140 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9843 |
