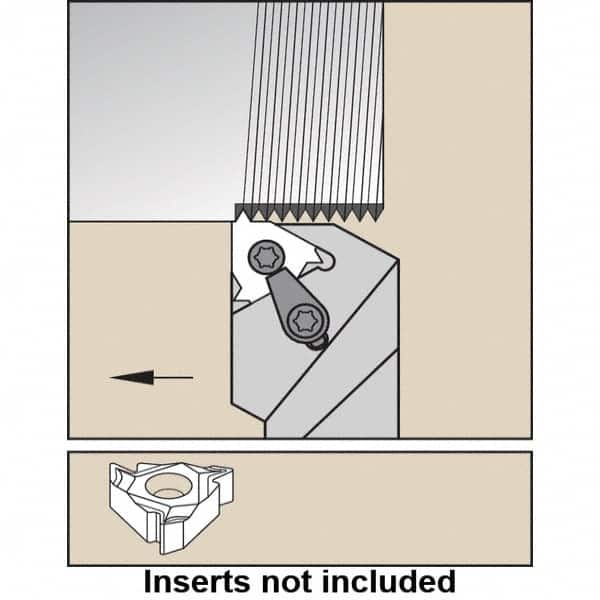

Kennametal - External Thread, Left Hand Cut, 25mm Shank Width x 25mm Shank Height Indexable Threading Toolholder - 150mm OAL, LT 16EL Insert Compatibility, LSS-DH Toolholder, Series LT Threading
Item #: 46889291
Brand: Kennametal
Model #: 1611939
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Insert Compatibility | LT 16EL |
| Series | LT Threading |
| Toolholder Style | LSS-DH |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 38.00 |
| Head Length (Decimal Inch) | 1.4961 |
| Shank Length (Decimal Inch) | 4.4094 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
