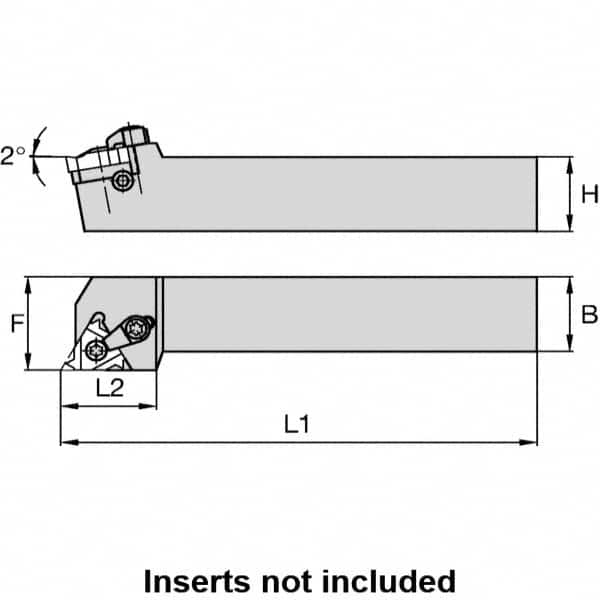

Kennametal - External Thread, Right Hand Cut, 32mm Shank Width x 32mm Shank Height Indexable Threading Toolholder - 170mm OAL, LT 16ER Insert Compatibility, LSS Toolholder, Series LT Threading
Item #: 46889309
Brand: Kennametal
Model #: 1611933
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (Decimal Inch) | 6.6929 |
| Overall Length (mm) | 170.00 |
| Insert Compatibility | LT 16ER |
| Series | LT Threading |
| Toolholder Style | LSS |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5748 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Shank Length (Decimal Inch) | 5.4331 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
