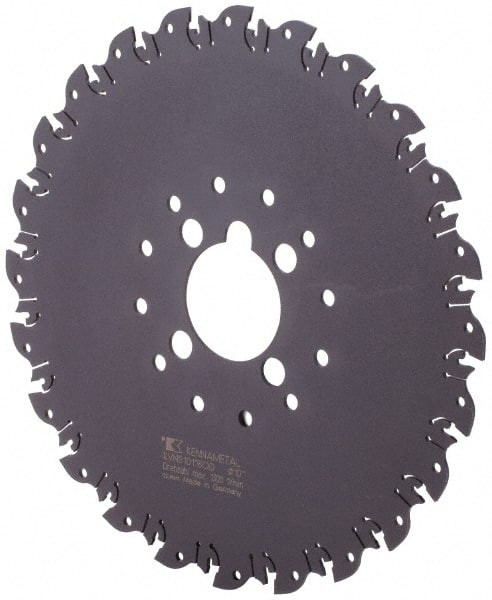

Kennametal - Arbor Hole Connection, 1/8" Cutting Width, 3-1/4" Depth of Cut, 10" Cutter Diam, 2" Hole Diam, 24 Tooth Indexable Slotting Cutter - KVNS Toolholder, OD 3118.. Insert
Item #: 46889432
Brand: Kennametal
Model #: 1247778
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 3.20 |
| Cutting Width (Decimal Inch) | 0.1260 |
| Maximum Depth of Cut (mm) | 82.55 |
| Maximum Depth of Cut (Decimal Inch) | 3.2500 |
| Cutter Diameter (mm) | 254.00 |
| Cutter Diameter (Decimal Inch) | 10.0000 |
| Cutter Diameter (Inch) | 10 |
| Hole Diameter (mm) | 50.80 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Number of Teeth | 24 |
| Toolholder Style | KVNS |
| Series | KVNS |
| Insert Style | OD 3118.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 1300 |
| Minimum Cutting Width (Decimal Inch) | 0.1260 |
| Cutter Body Width (mm) | 2.40 |
| Cutter Body Width (Decimal Inch) | 0.0945 |
