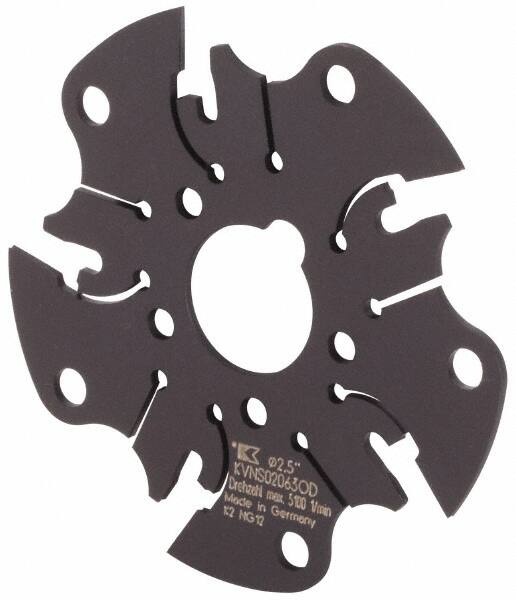

Kennametal - Arbor Hole Connection, 1/16" Cutting Width, 5/8" Depth of Cut, 2-1/2" Cutter Diam, 5/8" Hole Diam, 5 Tooth Indexable Slotting Cutter - KVNS Toolholder, OD 1063.. Insert
Item #: 46889507
Brand: Kennametal
Model #: 1247698
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 1.60 |
| Cutting Width (Decimal Inch) | 0.0630 |
| Maximum Depth of Cut (mm) | 15.88 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Cutter Diameter (mm) | 63.50 |
| Cutter Diameter (Decimal Inch) | 2.5000 |
| Cutter Diameter (Inch) | 2-1/2 |
| Hole Diameter (mm) | 15.88 |
| Hole Diameter (Inch) | 5/8 |
| Hole Diameter (Decimal Inch) | 0.6250 |
| Number of Teeth | 5 |
| Toolholder Style | KVNS |
| Series | KVNS |
| Insert Style | OD 1063.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 5100 |
| Minimum Cutting Width (Decimal Inch) | 0.0630 |
| Cutter Body Width (mm) | 1.30 |
| Cutter Body Width (Decimal Inch) | 0.0512 |
