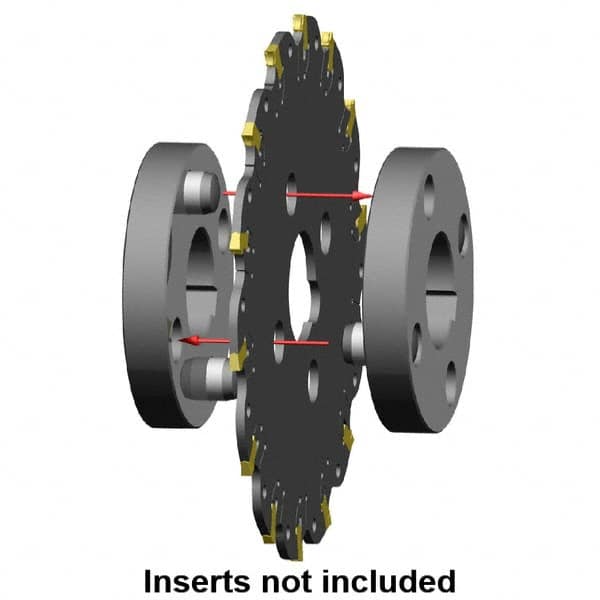

Kennametal - Arbor Hole Connection, 0.1181" Cutting Width, 2.3622" Depth of Cut, 200mm Cutter Diam, 1.5748" Hole Diam, 19 Tooth Indexable Slotting Cutter - KVNS Toolholder, 3.900 Insert
Item #: 46889531
Brand: Kennametal
Model #: 1246153
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 60.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.3622 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 19 |
| Toolholder Style | KVNS |
| Series | KVNS A2 |
| Insert Style | 3.900 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 19 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 1600 |
| Minimum Cutting Width (Decimal Inch) | 0.1181 |
| Hub Diameter (mm) | 80.00 |
| Hub Diameter (Decimal Inch) | 3.1496 |
| Cutter Body Width (mm) | 2.40 |
| Cutter Body Width (Decimal Inch) | 0.0945 |
| Complete Insert Compatibility1 | 3.90030.. |
