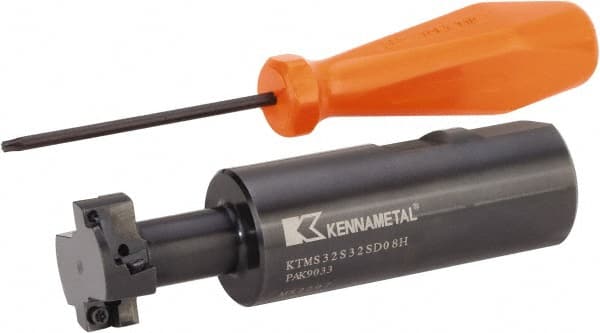

Kennametal - 1.2598" Cutting Diam x 0.5512" Cutting Width, 4 Cutter Inserts, 1.2598" Shank Diam, Indexable T-Slot Cutter - Insert Style SDMT 080308EGG, 4.7244" OAL, 2 Flutes
Item #: 46889648
Brand: Kennametal
Model #: 3577133
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Cutting Width (Decimal Inch) | 0.5512 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Toolholder Style | KTMS |
| Number of Cutter Inserts | 4 |
| Insert Style | SDMT 080308EGG |
| Staggered Tooth | Yes |
| Number of Flutes | 2 |
| Neck Diameter (Decimal Inch) | 0.6102 |
| Shank Length (Decimal Inch) | 3.2283 |
| Overall Length (Decimal Inch) | 4.7244 |
| Maximum Reach (Decimal Inch) | 1.4961 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Complete Insert Compatibility | SDMT 080308EGG |
