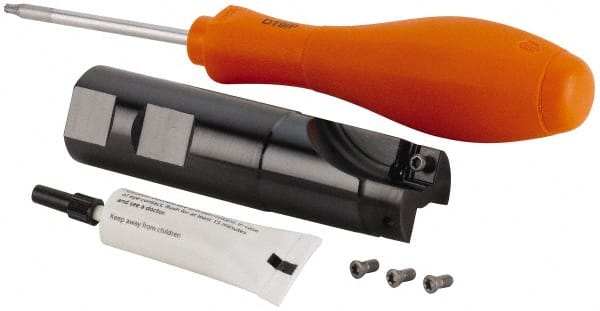

Kennametal - 32mm Cut Diam, 6.57mm Max Depth of Cut, 32mm Shank Diam, 100mm OAL, Indexable Square Shoulder End Mill - SP.T 10T3.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series KSSM 90
Item #: 46889853
Brand: Kennametal
Model #: 1981788
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2600 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 100.00 |
| Overall Length/Projection (Decimal Inch) | 3.9370 |
| Lead Angle | 0 |
| Series | KSSM 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 6.57 |
| Maximum Depth of Cut (Decimal Inch) | 0.2587 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Head Length (mm) | 39.00 |
| Head Length (Decimal Inch) | 1.5354 |
| Weldon Flat | Yes |
| Insert Compatibility | SP.T 10T3.. |
| Shank Length (Decimal Inch) | 2.4016 |
| Shank Length (mm) | 61.00 |
| Maximum RPM | 33200 |
| Coolant Hole Diameter (mm) | 9.52 |
| Coolant Hole Diameter (Decimal Inch) | 0.3748 |
