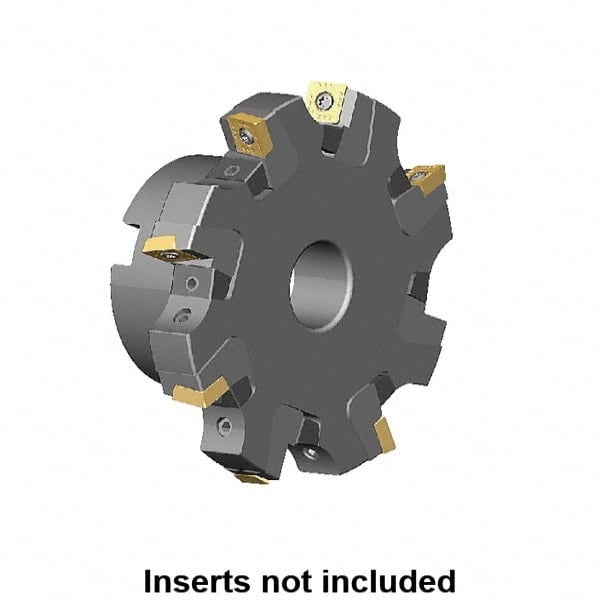

Kennametal - Shell Mount Connection, 0.63" Cutting Width, 2.2996" Depth of Cut, 250mm Cutter Diam, 2.3622" Hole Diam, 18 Tooth Indexable Slotting Cutter - KSSM Toolholder, SP.T 10T3.. Insert, Neutral Cutting Direction
Item #: 46890109
Brand: Kennametal
Model #: 2443512
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6300 |
| Maximum Depth of Cut (mm) | 58.41 |
| Maximum Depth of Cut (Decimal Inch) | 2.2996 |
| Cutter Diameter (mm) | 250.00 |
| Cutter Diameter (Decimal Inch) | 9.8425 |
| Hole Diameter (mm) | 60.00 |
| Hole Diameter (Decimal Inch) | 2.3622 |
| Number of Teeth | 18 |
| Toolholder Style | KSSM |
| Series | KSSM |
| Insert Style | SP.T 10T3.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 18 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 10900 |
| Minimum Cutting Width (Decimal Inch) | 0.6300 |
| Maximum Cutting Width (Decimal Inch) | 0.7087 |
| Maximum Cutting Width (mm) | 18.00 |
| Hub Diameter (mm) | 130.00 |
| Hub Diameter (Decimal Inch) | 5.1180 |
| Complete Insert Compatibility1 | SP.T 10T3PP.R/L. |
