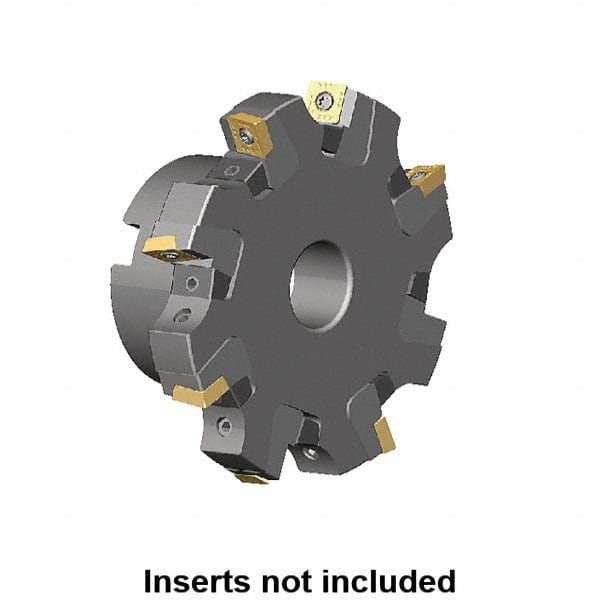

Kennametal - Shell Mount Connection, 13/16" Cutting Width, 2.1028" Depth of Cut, 200mm Cutter Diam, 1.5748" Hole Diam, 14 Tooth Indexable Slotting Cutter - KSSM Toolholder, SD.T 1204.. Insert, Neutral Cutting Direction
Item #: 46890141
Brand: Kennametal
Model #: 2443500
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 20.65 |
| Cutting Width (Decimal Inch) | 0.8130 |
| Maximum Depth of Cut (mm) | 53.41 |
| Maximum Depth of Cut (Decimal Inch) | 2.1028 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 14 |
| Toolholder Style | KSSM |
| Series | KSSM |
| Insert Style | SD.T 1204.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 8200 |
| Minimum Cutting Width (Decimal Inch) | 0.8130 |
| Maximum Cutting Width (Decimal Inch) | 0.9173 |
| Maximum Cutting Width (mm) | 23.30 |
| Hub Diameter (mm) | 90.00 |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Complete Insert Compatibility1 | SD.T1204PD.R../L.. |
