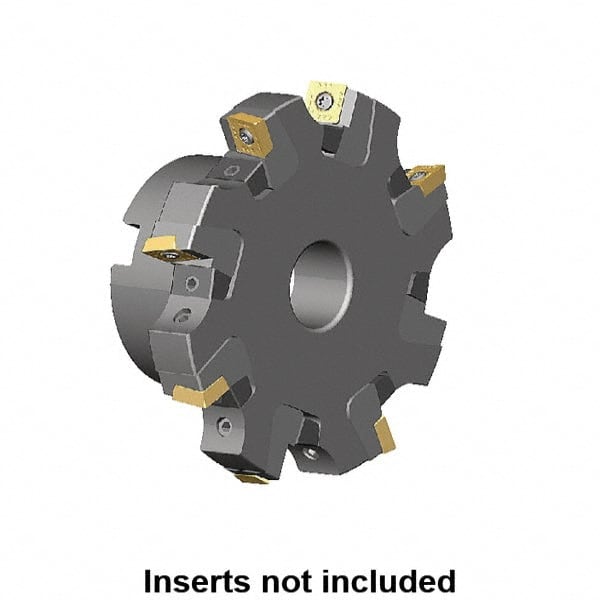

Kennametal - Shell Mount Connection, 0.551" Cutting Width, 2.1028" Depth of Cut, 200mm Cutter Diam, 1.5748" Hole Diam, 14 Tooth Indexable Slotting Cutter - KSSM Toolholder, SP.T 10T3.. Insert, Neutral Cutting Direction
Item #: 46890166
Brand: Kennametal
Model #: 2443491
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 14.00 |
| Cutting Width (Decimal Inch) | 0.5510 |
| Maximum Depth of Cut (mm) | 53.41 |
| Maximum Depth of Cut (Decimal Inch) | 2.1028 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 14 |
| Toolholder Style | KSSM |
| Series | KSSM |
| Insert Style | SP.T 10T3.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 12200 |
| Minimum Cutting Width (Decimal Inch) | 0.5510 |
| Maximum Cutting Width (Decimal Inch) | 0.6300 |
| Maximum Cutting Width (mm) | 16.00 |
| Hub Diameter (mm) | 90.00 |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Complete Insert Compatibility1 | SP.T 10T3PP.R/L. |
