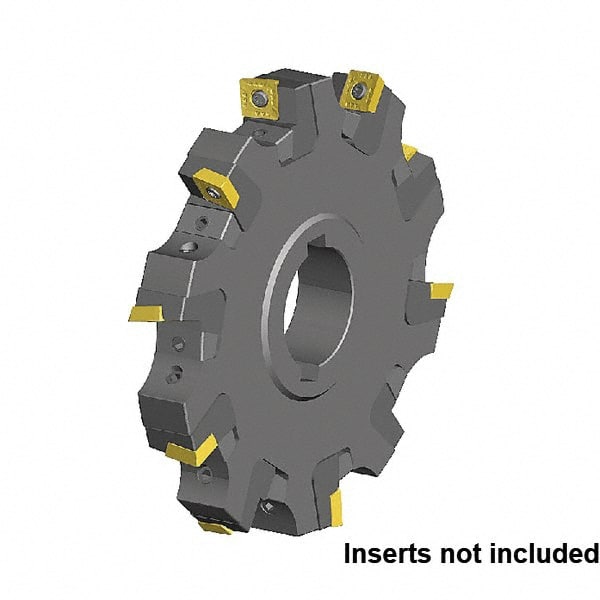

Kennametal - Arbor Hole Connection, 0.7087" Cutting Width, 2.5394" Depth of Cut, 200mm Cutter Diam, 1.9685" Hole Diam, 14 Tooth Indexable Slotting Cutter - KSSM Toolholder, SD.T 1204.. Insert, Neutral Cutting Direction
Item #: 46890182
Brand: Kennametal
Model #: 2443485
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 18.00 |
| Cutting Width (Decimal Inch) | 0.7087 |
| Maximum Depth of Cut (mm) | 64.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.5394 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 14 |
| Toolholder Style | KSSM |
| Series | KSSM |
| Insert Style | SD.T 1204.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 8200 |
| Minimum Cutting Width (Decimal Inch) | 0.7090 |
| Maximum Cutting Width (Decimal Inch) | 0.8130 |
| Maximum Cutting Width (mm) | 20.65 |
| Hub Diameter (mm) | 68.75 |
| Hub Diameter (Decimal Inch) | 2.7067 |
| Cutter Body Width (mm) | 18.18 |
| Cutter Body Width (Decimal Inch) | 0.7157 |
| Complete Insert Compatibility1 | SD.T1204PD.R../L.. |
