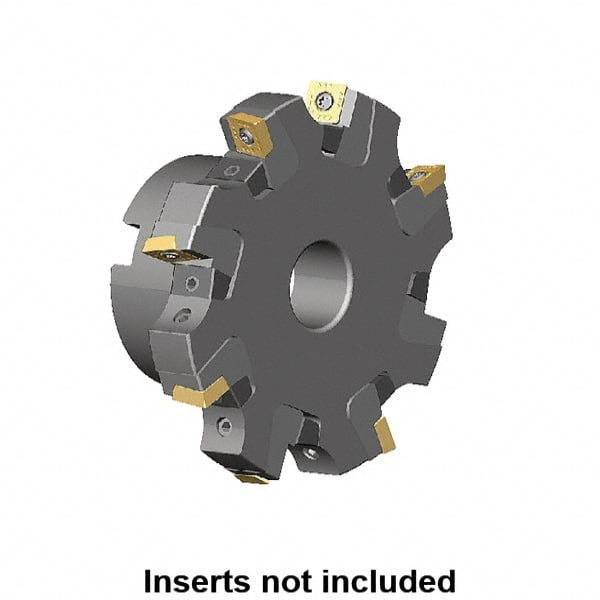

Kennametal - Shell Mount Connection, 13/16" Cutting Width, 1.709" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 10 Tooth Indexable Slotting Cutter - KSSM Toolholder, SD.T 1204.. Insert, Neutral Cutting Direction
Item #: 46890208
Brand: Kennametal
Model #: 2443476
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 20.65 |
| Cutting Width (Decimal Inch) | 0.8130 |
| Maximum Depth of Cut (mm) | 43.41 |
| Maximum Depth of Cut (Decimal Inch) | 1.7090 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 10 |
| Toolholder Style | KSSM |
| Series | KSSM |
| Insert Style | SD.T 1204.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 9150 |
| Minimum Cutting Width (Decimal Inch) | 0.8130 |
| Maximum Cutting Width (Decimal Inch) | 0.9173 |
| Maximum Cutting Width (mm) | 23.30 |
| Hub Diameter (mm) | 70.00 |
| Hub Diameter (Decimal Inch) | 2.7560 |
| Complete Insert Compatibility1 | SD.T1204PD.R../L.. |
