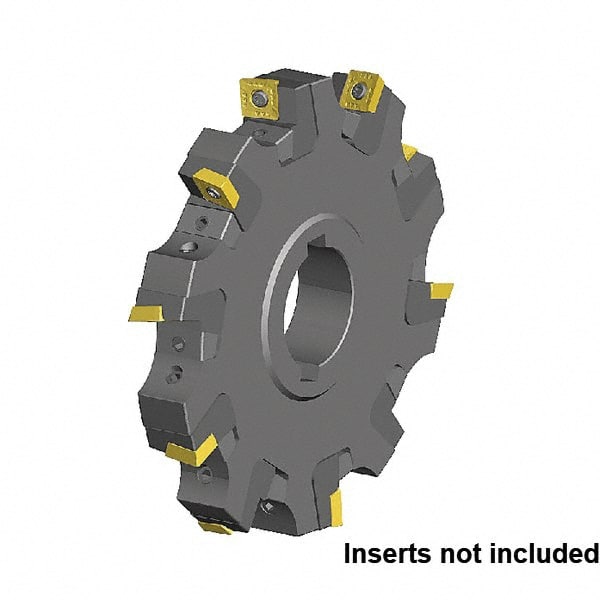

Kennametal - Arbor Hole Connection, 0.63" Cutting Width, 1.353" Depth of Cut, 125mm Cutter Diam, 1.5748" Hole Diam, 8 Tooth Indexable Slotting Cutter - KSSM Toolholder, SP.T 10T3.. Insert, Neutral Cutting Direction
Item #: 46890349
Brand: Kennametal
Model #: 2443434
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6300 |
| Maximum Depth of Cut (mm) | 34.37 |
| Maximum Depth of Cut (Decimal Inch) | 1.3530 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 8 |
| Toolholder Style | KSSM |
| Series | KSSM |
| Insert Style | SP.T 10T3.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 15450 |
| Minimum Cutting Width (Decimal Inch) | 0.6300 |
| Maximum Cutting Width (Decimal Inch) | 0.7087 |
| Maximum Cutting Width (mm) | 18.00 |
| Hub Diameter (mm) | 54.75 |
| Hub Diameter (Decimal Inch) | 2.1555 |
| Cutter Body Width (mm) | 15.86 |
| Cutter Body Width (Decimal Inch) | 0.6244 |
| Complete Insert Compatibility1 | SP.T 10T3PP.R/L. |
