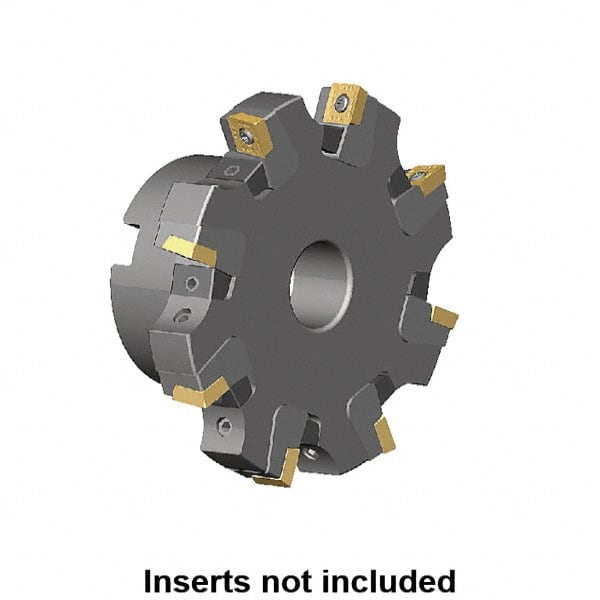

Kennametal - Shell Mount Connection, 0.359" Cutting Width, 1.709" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 10 Tooth Indexable Slotting Cutter - KSSM Toolholder, SP.T 10T3.. Insert, Right Hand Cutting Direction
Item #: 46890364
Brand: Kennametal
Model #: 2443468
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 9.12 |
| Cutting Width (Decimal Inch) | 0.3590 |
| Maximum Depth of Cut (mm) | 43.41 |
| Maximum Depth of Cut (Decimal Inch) | 1.7090 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 10 |
| Toolholder Style | KSSM |
| Series | KSSM |
| Insert Style | SP.T 10T3.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 13650 |
| Hub Diameter (mm) | 70.00 |
| Hub Diameter (Decimal Inch) | 2.7560 |
| Complete Insert Compatibility1 | SP.T 10T3PP.R. |
