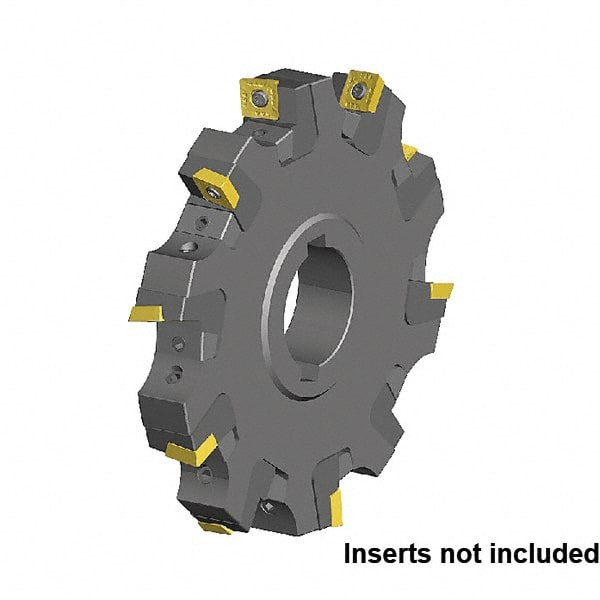

Kennametal - Arbor Hole Connection, 0.551" Cutting Width, 1.0185" Depth of Cut, 100mm Cutter Diam, 1.2598" Hole Diam, 6 Tooth Indexable Slotting Cutter - KSSM Toolholder, SP.T 10T3.. Insert, Neutral Cutting Direction
Item #: 46890562
Brand: Kennametal
Model #: 2442595
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 14.00 |
| Cutting Width (Decimal Inch) | 0.5510 |
| Maximum Depth of Cut (mm) | 25.87 |
| Maximum Depth of Cut (Decimal Inch) | 1.0185 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 6 |
| Toolholder Style | KSSM |
| Series | KSSM |
| Insert Style | SP.T 10T3.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 17250 |
| Minimum Cutting Width (Decimal Inch) | 0.5510 |
| Maximum Cutting Width (Decimal Inch) | 0.6300 |
| Maximum Cutting Width (mm) | 16.00 |
| Hub Diameter (mm) | 46.75 |
| Hub Diameter (Decimal Inch) | 1.8406 |
| Cutter Body Width (mm) | 13.85 |
| Cutter Body Width (Decimal Inch) | 0.5453 |
| Complete Insert Compatibility1 | SP.T 10T3PP.R/L. |
