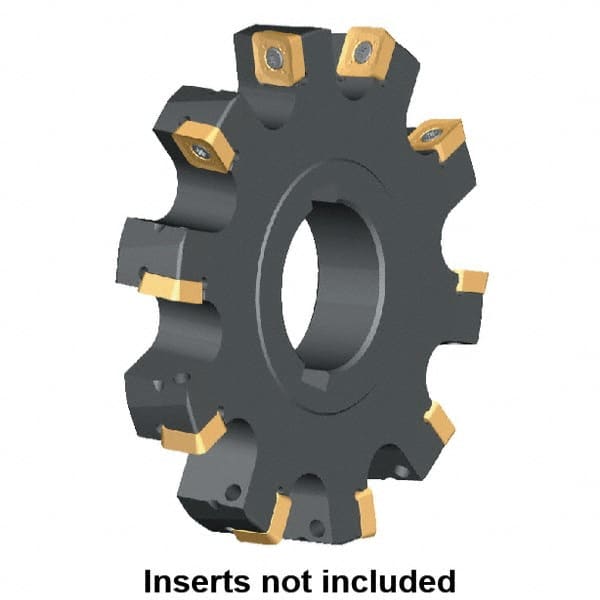

Kennametal - Arbor Hole Connection, 0.3587" Cutting Width, 2.069" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 11 Tooth Indexable Slotting Cutter - KSSS Toolholder, SP.T 10T3.. Insert, Left Hand Cutting Direction
Item #: 46890786
Brand: Kennametal
Model #: 3330975
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 9.11 |
| Cutting Width (Decimal Inch) | 0.3587 |
| Maximum Depth of Cut (mm) | 52.55 |
| Maximum Depth of Cut (Decimal Inch) | 2.0690 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 11 |
| Toolholder Style | KSSS |
| Series | KSSS |
| Insert Style | SP.T 10T3.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 11 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 13660 |
| Minimum Cutting Width (Decimal Inch) | 0.3590 |
| Hub Diameter (mm) | 54.75 |
| Hub Diameter (Decimal Inch) | 2.1555 |
| Cutter Body Width (mm) | 16.00 |
| Cutter Body Width (Decimal Inch) | 0.6300 |
| Complete Insert Compatibility1 | SP.T 10T3PP.L. |
