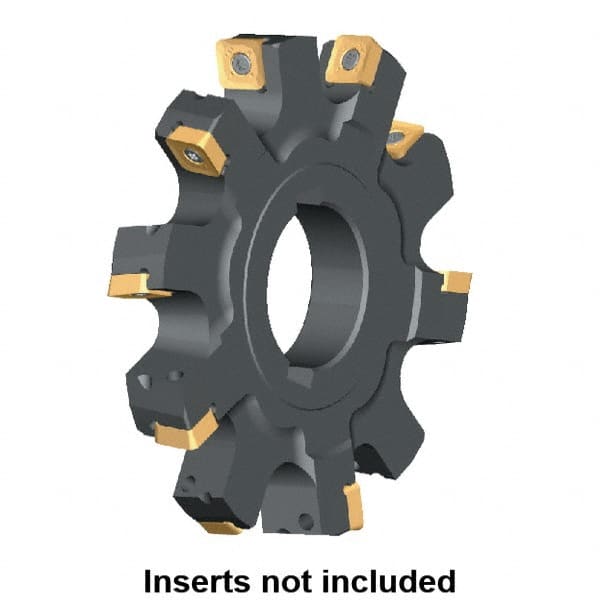

Kennametal - Arbor Hole Connection, 0.6232" Cutting Width, 1.8154" Depth of Cut, 200mm Cutter Diam, 1.9685" Hole Diam, 14 Tooth Indexable Slotting Cutter - KSSS Toolholder, SP.T 10T3.. Insert, Neutral Cutting Direction
Item #: 46890844
Brand: Kennametal
Model #: 3330976
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 15.83 |
| Cutting Width (Decimal Inch) | 0.6232 |
| Maximum Depth of Cut (mm) | 46.11 |
| Maximum Depth of Cut (Decimal Inch) | 1.8154 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 14 |
| Toolholder Style | KSSS |
| Series | KSSS |
| Insert Style | SP.T 10T3.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 12200 |
| Minimum Cutting Width (Decimal Inch) | 0.6230 |
| Hub Diameter (mm) | 68.75 |
| Hub Diameter (Decimal Inch) | 2.7067 |
| Cutter Body Width (mm) | 13.88 |
| Cutter Body Width (Decimal Inch) | 0.5465 |
| Complete Insert Compatibility1 | SP.T 10T3PP.R/L. |
