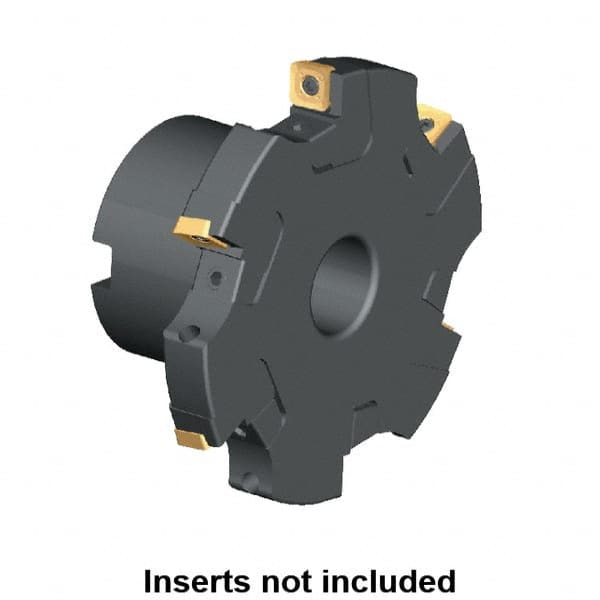

Kennametal - Shell Mount Connection, 0.359" Cutting Width, 0.961" Depth of Cut, 100mm Cutter Diam, 1-1/16" Hole Diam, 6 Tooth Indexable Slotting Cutter - KSSM Toolholder, SP.T 10T3.. Insert, Left Hand Cutting Direction
Item #: 46890893
Brand: Kennametal
Model #: 2442600
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 9.12 |
| Cutting Width (Decimal Inch) | 0.3590 |
| Maximum Depth of Cut (mm) | 24.41 |
| Maximum Depth of Cut (Decimal Inch) | 0.9610 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 6 |
| Toolholder Style | KSSM |
| Series | KSSM |
| Insert Style | SP.T 10T3.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 17250 |
| Hub Diameter (mm) | 48.00 |
| Hub Diameter (Decimal Inch) | 1.8898 |
| Complete Insert Compatibility1 | SP.T 10T3PP.L. |
