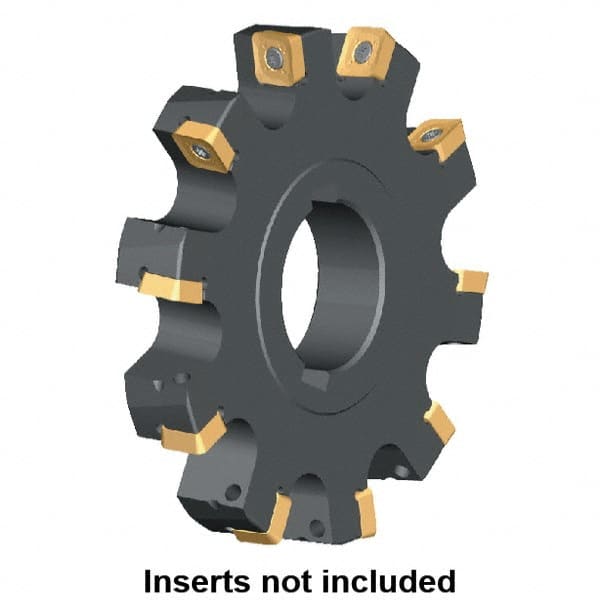

Kennametal - Arbor Hole Connection, 0.4606" Cutting Width, 2.5807" Depth of Cut, 200mm Cutter Diam, 1.9685" Hole Diam, 14 Tooth Indexable Slotting Cutter - KSSS Toolholder, SD.T 1204.. Insert, Left Hand Cutting Direction
Item #: 46891099
Brand: Kennametal
Model #: 3330988
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 11.70 |
| Cutting Width (Decimal Inch) | 0.4606 |
| Maximum Depth of Cut (mm) | 65.55 |
| Maximum Depth of Cut (Decimal Inch) | 2.5807 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 14 |
| Toolholder Style | KSSS |
| Series | KSSS |
| Insert Style | SD.T 1204.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.4610 |
| Hub Diameter (mm) | 68.75 |
| Hub Diameter (Decimal Inch) | 2.7067 |
| Cutter Body Width (mm) | 20.00 |
| Cutter Body Width (Decimal Inch) | 0.7874 |
| Complete Insert Compatibility1 | SD.T1204PD.L. |
