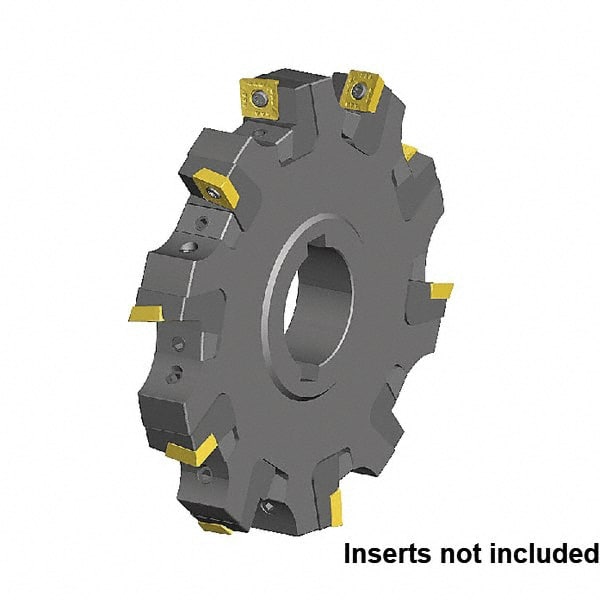

Kennametal - Arbor Hole Connection, 13/16" Cutting Width, 1.3386" Depth of Cut, 125mm Cutter Diam, 1.5748" Hole Diam, 8 Tooth Indexable Slotting Cutter - KSSM Toolholder, SD.T 1204.. Insert, Neutral Cutting Direction
Item #: 46891115
Brand: Kennametal
Model #: 2443440
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 20.65 |
| Cutting Width (Decimal Inch) | 0.8130 |
| Maximum Depth of Cut (mm) | 34.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.3386 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 8 |
| Toolholder Style | KSSM |
| Series | KSSM |
| Insert Style | SD.T 1204.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 10350 |
| Minimum Cutting Width (Decimal Inch) | 0.8130 |
| Maximum Cutting Width (Decimal Inch) | 0.9173 |
| Maximum Cutting Width (mm) | 23.30 |
| Hub Diameter (mm) | 54.75 |
| Hub Diameter (Decimal Inch) | 2.1555 |
| Cutter Body Width (mm) | 20.82 |
| Cutter Body Width (Decimal Inch) | 0.8197 |
| Complete Insert Compatibility1 | SD.T1204PD.R../L.. |
