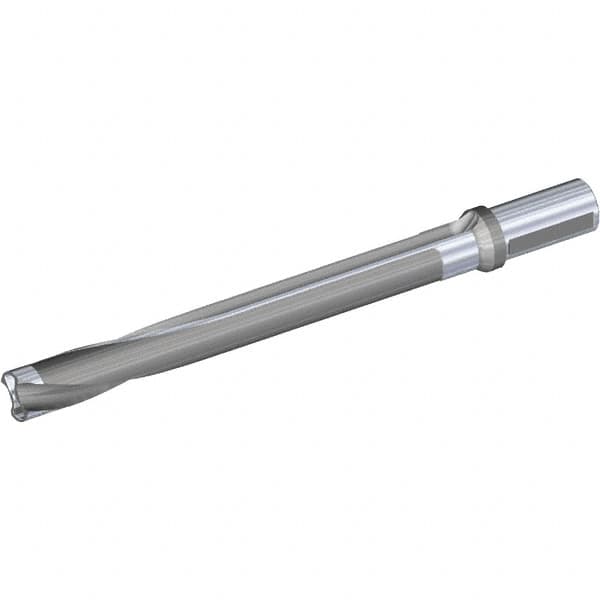

Kennametal - Series KSEM Plus, Head Connection FDS28, 8xD, 1-1/2" Shank Diam, Drill Body - SSF Toolholder, 26.49mm Nose Diam, 378.26mm OAL, 283.01mm Drill Body Length, 226.01mm Flute Length, Weldon Flat Shank, Through Coolant
Item #: 46891156
Brand: Kennametal
Model #: 4051140
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS28 |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Toolholder Style | SSF |
| Nose Diameter (mm) | 26.49 |
| Nose Diameter (Decimal Inch) | 1.0430 |
| Overall Length (mm) | 378.26 |
| Overall Length (Decimal Inch) | 14.8920 |
| Gage Length (mm) | 283.01 |
| Gage Length (Decimal Inch) | 11.1420 |
| Flute Length (mm) | 226.01 |
| Flute Length (Decimal Inch) | 8.8980 |
| Shank Type | Weldon Flat |
| Shank Length (mm) | 95.25 |
| Shank Length (Decimal Inch) | 3.7500 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Coolant Hole Thread Size (Inch) | 1/8-27 |
| Number of Shank Flats | 1 |
