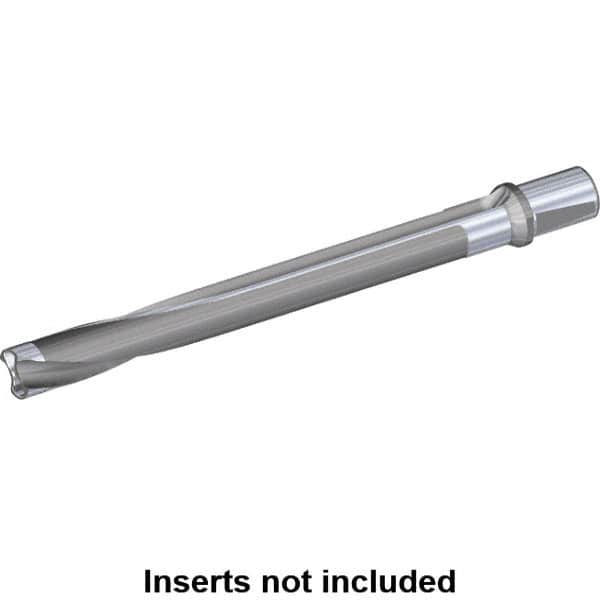

Kennametal - Series KSEM Plus, Head Connection FDS28, 8xD, 32mm Shank Diam, Drill Body - WD Toolholder, 26.5mm Nose Diam, 341mm OAL, 283mm Drill Body Length, 226mm Flute Length, Whistle Notch Shank, Through Coolant
Item #: 46891164
Brand: Kennametal
Model #: 4051137
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS28 |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Toolholder Style | WD |
| Nose Diameter (mm) | 26.50 |
| Nose Diameter (Decimal Inch) | 1.0433 |
| Overall Length (mm) | 341.00 |
| Overall Length (Decimal Inch) | 13.4250 |
| Gage Length (mm) | 283.00 |
| Gage Length (Decimal Inch) | 11.1417 |
| Flute Length (mm) | 226.00 |
| Flute Length (Decimal Inch) | 8.8976 |
| Shank Type | Whistle Notch |
| Shank Length (mm) | 58.00 |
| Shank Length (Decimal Inch) | 2.2835 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Coolant Hole Thread Size (Inch) | 1/8-27 |
