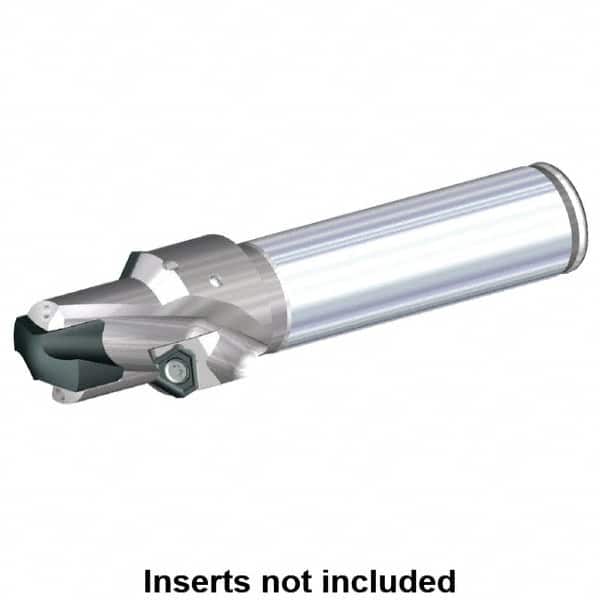

Kennametal - 15.88 to 18mm Diam, 1xD, 18mm Max Depth, 3/4" Shank Diam, 95.25mm OAL, Replaceable Tip Drill - KSEM0625, TPGX 1102ZPR Insert, 1 Seat Size, KSEM Toolholder, Series KSEM Chamfer
Item #: 46891222
Brand: Kennametal
Model #: 2224001
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM Chamfer |
| Minimum Drill Diameter (mm) | 15.88 |
| Minimum Drill Diameter (Decimal Inch) | 0.6250 |
| Maximum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7086 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.7087 |
| Maximum Drill Depth (mm) | 18.00 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0625; TPGX 1102ZPR |
| Insert Seat Size | 1 |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 2.49 |
| Coolant Hole Diameter (Decimal Inch) | 0.0980 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank Type | Straight Shank |
| Tip Length (mm) | 2.52 |
| Tip Length (Decimal Inch) | 0.0992 |
| Overall Length (mm) | 95.25 |
| Overall Length (Decimal Inch) | 3.7500 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
