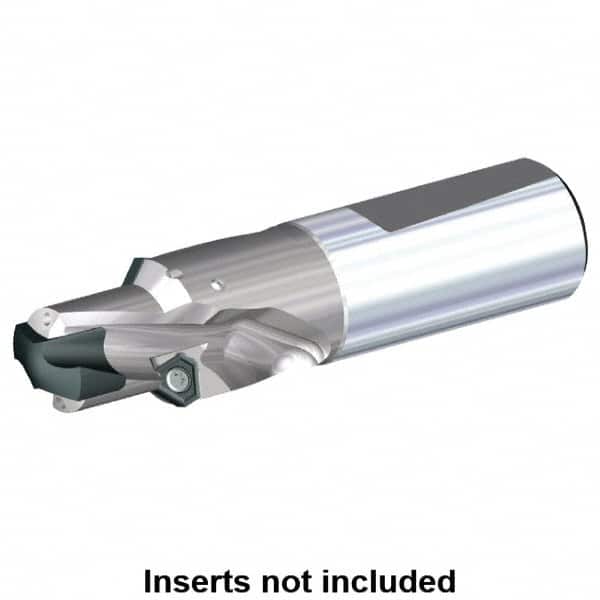

Kennametal - 36.01 to 40mm Diam, 1xD, 40mm Max Depth, 50mm Shank Diam, 164.81mm OAL, Replaceable Tip Drill - KSEM3601, TPGX 1603ZPR Insert, 10 Seat Size, KSEM Toolholder, Series KSEM Chamfer
Item #: 46891313
Brand: Kennametal
Model #: 1993409
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Chamfer |
| Minimum Drill Diameter (mm) | 36.01 |
| Minimum Drill Diameter (Decimal Inch) | 1.4177 |
| Maximum Drill Diameter (mm) | 40.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.5748 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 1.5748 |
| Maximum Drill Depth (mm) | 40.00 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Insert Style | KSEM3601; TPGX 1603ZPR |
| Insert Seat Size | 10 |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 5.54 |
| Tip Length (Decimal Inch) | 0.2181 |
| Body Length (mm) | 96.81 |
| Body Length (Decimal Inch) | 3.8114 |
| Overall Length (mm) | 164.81 |
| Overall Length (Decimal Inch) | 6.4886 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
