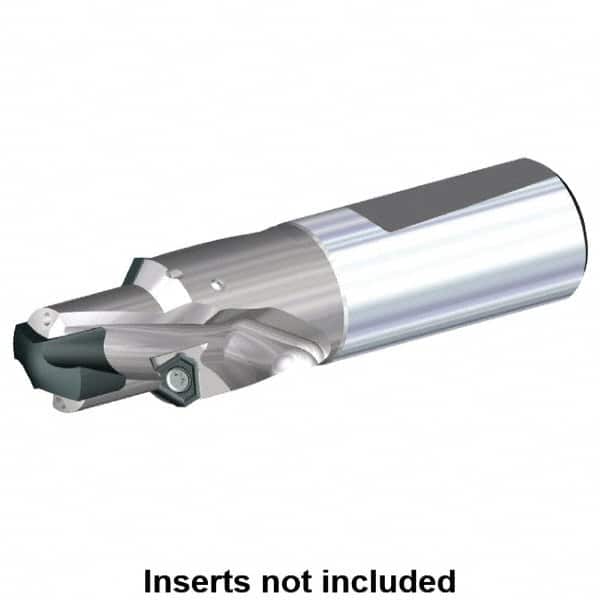

Kennametal - 30.01 to 32mm Diam, 1xD, 32mm Max Depth, 32mm Shank Diam, 135.85mm OAL, Replaceable Tip Drill - KSEM3001, TPGX 1603ZPR Insert, 8 Seat Size, KSEM Toolholder, Series KSEM Chamfer
Item #: 46891321
Brand: Kennametal
Model #: 1993407
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Chamfer |
| Minimum Drill Diameter (mm) | 30.01 |
| Minimum Drill Diameter (Decimal Inch) | 1.1815 |
| Maximum Drill Diameter (mm) | 32.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.2598 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 1.2598 |
| Maximum Drill Depth (mm) | 32.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | KSEM3001; TPGX 1603ZPR |
| Insert Seat Size | 8 |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 4.62 |
| Tip Length (Decimal Inch) | 0.1818 |
| Overall Length (mm) | 135.85 |
| Overall Length (Decimal Inch) | 5.3484 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
