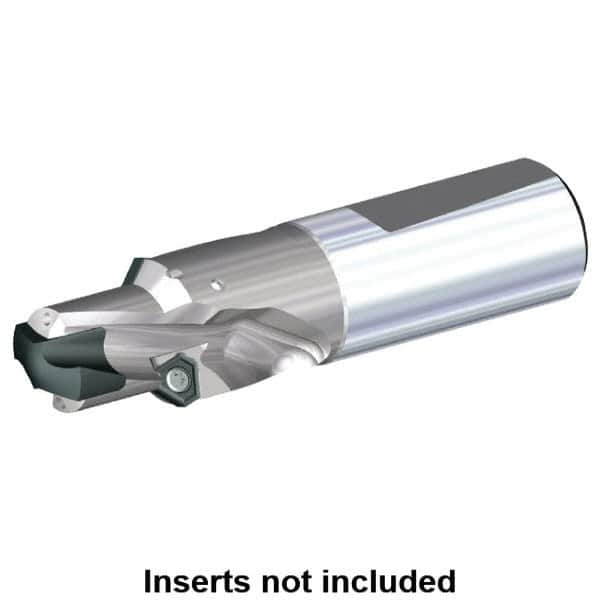

Kennametal - 28.02 to 30mm Diam, 1xD, 30mm Max Depth, 32mm Shank Diam, 133.52mm OAL, Replaceable Tip Drill - KSEM2801, TPGX 1603ZPR Insert, 7 Seat Size, KSEM Toolholder, Series KSEM Chamfer
Item #: 46891339
Brand: Kennametal
Model #: 1993406
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Chamfer |
| Minimum Drill Diameter (mm) | 28.02 |
| Minimum Drill Diameter (Decimal Inch) | 1.1028 |
| Maximum Drill Diameter (mm) | 30.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.1811 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 1.1811 |
| Maximum Drill Depth (mm) | 30.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | KSEM2801; TPGX 1603ZPR |
| Insert Seat Size | 7 |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 4.31 |
| Tip Length (Decimal Inch) | 0.1697 |
| Overall Length (mm) | 133.52 |
| Overall Length (Decimal Inch) | 5.2567 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
