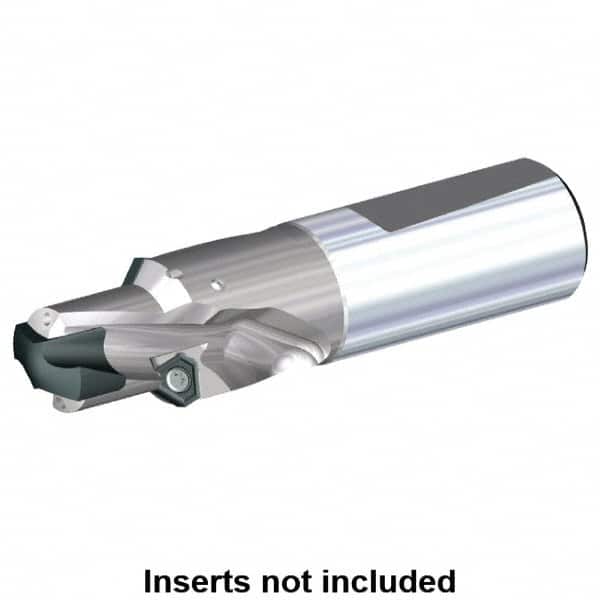

Kennametal - 18.01 to 20mm Diam, 1xD, 19.84mm Max Depth, 63/64" Shank Diam, 117.91mm OAL, Replaceable Tip Drill - KSEM1801, TPGX 1102ZPR Insert, 2 Seat Size, KSEM Toolholder, Series KSEM Chamfer
Item #: 46891354
Brand: Kennametal
Model #: 1993403
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Chamfer |
| Minimum Drill Diameter (mm) | 18.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.7091 |
| Maximum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7873 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.7811 |
| Maximum Drill Depth (mm) | 19.84 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Insert Style | KSEM1801; TPGX 1102ZPR |
| Insert Seat Size | 2 |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 2.86 |
| Tip Length (Decimal Inch) | 0.1125 |
| Overall Length (mm) | 117.91 |
| Overall Length (Decimal Inch) | 4.6421 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
