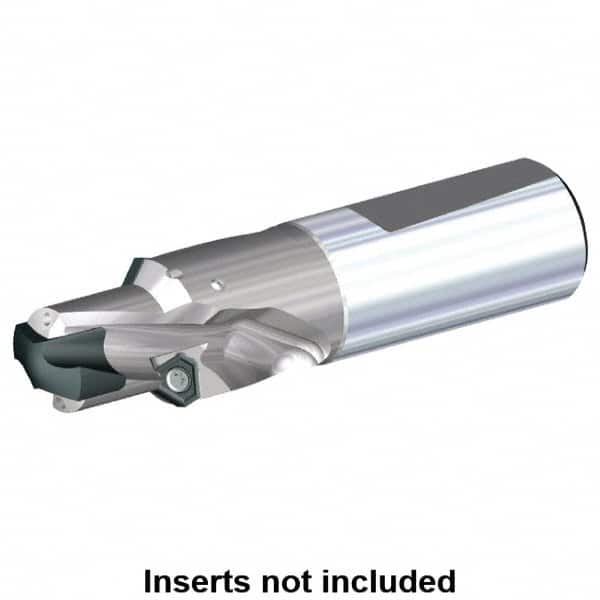

Kennametal - 24.01 to 26mm Diam, 1xD, 26mm Max Depth, 32mm Shank Diam, 128.88mm OAL, Replaceable Tip Drill - KSEM2401, TPGX 1603ZPR Insert, 5 Seat Size, KSEM Toolholder, Series KSEM Chamfer
Item #: 46891362
Brand: Kennametal
Model #: 1927916
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Chamfer |
| Minimum Drill Diameter (mm) | 24.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.9453 |
| Maximum Drill Diameter (mm) | 26.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.0236 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 1.0236 |
| Maximum Drill Depth (mm) | 26.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | KSEM2401; TPGX 1603ZPR |
| Insert Seat Size | 5 |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 3.81 |
| Tip Length (Decimal Inch) | 0.1500 |
| Overall Length (mm) | 128.88 |
| Overall Length (Decimal Inch) | 5.0740 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
