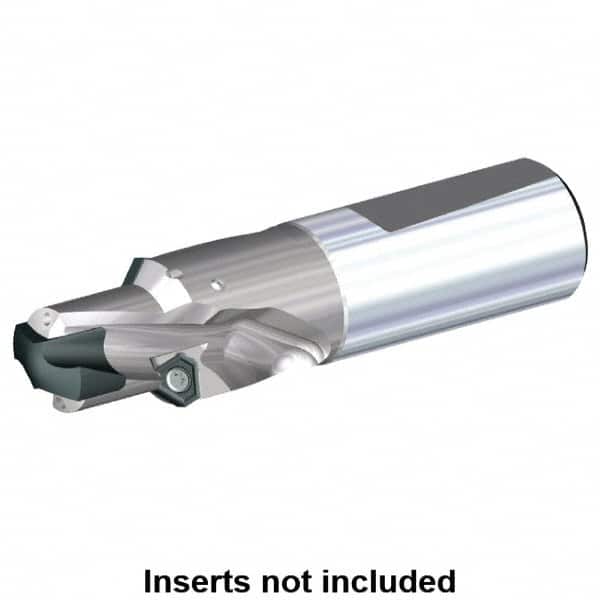

Kennametal - 20 to 22mm Diam, 1xD, 22mm Max Depth, 63/64" Shank Diam, 120.23mm OAL, Replaceable Tip Drill - KSEM2000, TPGX 1303ZPR Insert, 3 Seat Size, KSEM Toolholder, Series KSEM Chamfer
Item #: 46891370
Brand: Kennametal
Model #: 1927915
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Chamfer |
| Minimum Drill Diameter (mm) | 20.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Diameter (mm) | 22.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.8661 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.8661 |
| Maximum Drill Depth (mm) | 22.00 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Insert Style | KSEM2000; TPGX 1303ZPR |
| Insert Seat Size | 3 |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 3.18 |
| Tip Length (Decimal Inch) | 0.1250 |
| Overall Length (mm) | 120.23 |
| Overall Length (Decimal Inch) | 4.7335 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
