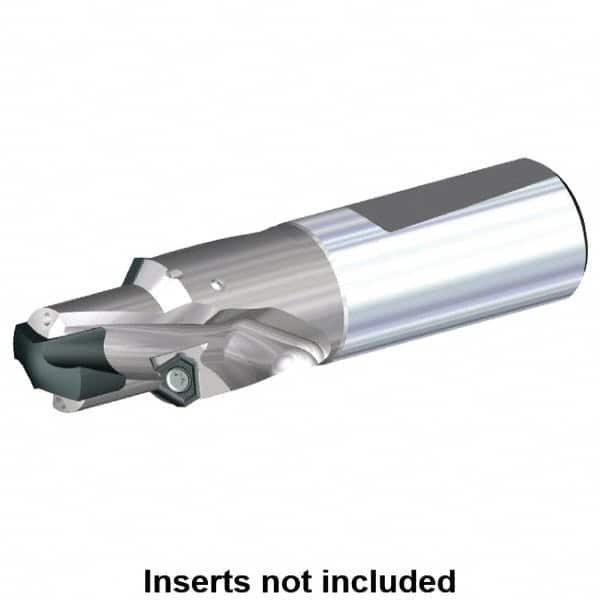

Kennametal - 12.5 to 13.5mm Diam, 1xD, 13.5mm Max Depth, 16mm Shank Diam, 107.02mm OAL, Replaceable Tip Drill - KSEM1250, TPGX 0902ZPR Insert, C Seat Size, KSEM Toolholder, Series KSEM Chamfer
Item #: 46891388
Brand: Kennametal
Model #: 1927913
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Chamfer |
| Minimum Drill Diameter (mm) | 12.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4921 |
| Maximum Drill Diameter (mm) | 13.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.5314 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.5315 |
| Maximum Drill Depth (mm) | 13.50 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | KSEM1250; TPGX 0902ZPR |
| Insert Seat Size | C |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 2.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.0984 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 1.98 |
| Tip Length (Decimal Inch) | 0.0781 |
| Overall Length (mm) | 107.02 |
| Overall Length (Decimal Inch) | 4.2134 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
