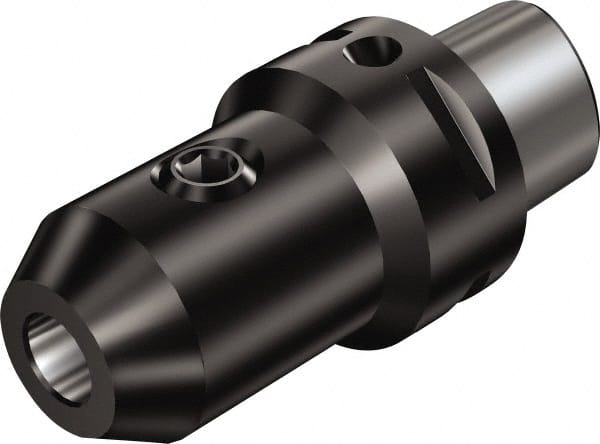

Sandvik Coromant - C6 Outside Modular Connection, 5/8" Hole Diam, Capto to Weldon Straight Shank Adapter - 65.02mm Projection, 32.3mm Nose Diam, 103.024mm OAL, Through Coolant
Item #: 47036538
Brand: Sandvik Coromant
Model #: 5729947
Exact Tooling IR#: 04
Features and Benefits
Straight shank adapters are used for holding straight shank tools in a tapered machine spindle.
| Product Specifications | |
|---|---|
| Type | Straight Shank Adapter |
| Taper Adapter Type | Capto to Weldon |
| Outside Modular Connection Size | C6 |
| Hole Diameter (Inch) | 5/8 |
| Hole Diameter (Decimal Inch) | 0.6250 |
| Projection (Decimal Inch) | 2.5600 |
| Projection (mm) | 65.02 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 1.2716 |
| Nose Diameter (mm) | 32.30 |
| Overall Length (mm) | 103.02 |
| Overall Length (Decimal Inch) | 4.0561 |
| Collar Diameter (Decimal Inch) | 2.4803 |
