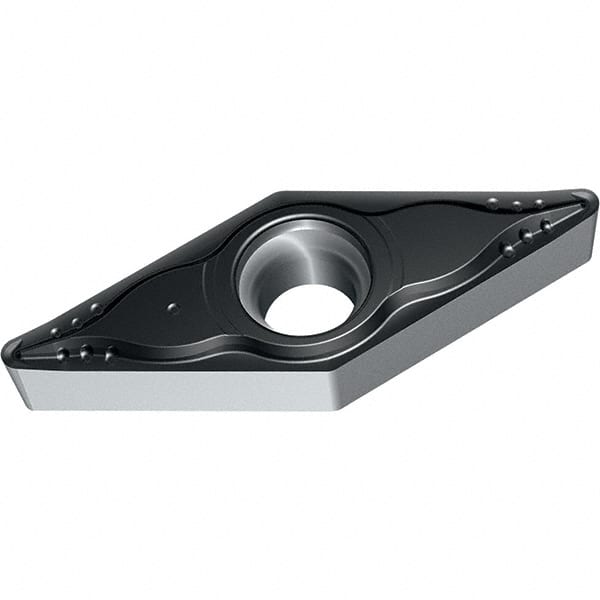

Walter - VBMT331.5 MP4 Grade WPP20S Carbide Turning Insert - 35° Parallelogram, 3/8" Inscr Circle, 3/16" Thick, 0.024" Corner Radius
Item #: 47054689
Brand: Walter
Model #: 6454235
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 331.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Decimal Inch) | 0.0240 |
| Manufacturer's Grade | WPP20S |
| Chip Breaker | MP4 |
| Insert Length (Decimal Inch) | 0.6538 |
| Relief Angle | 5 |
| Coating Process | CVD |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Parallelogram |
